The RI 2583 Solid state switch module is designed for applications such as:
- Production testing of mobile handsets
- Production testing of mobile base stations
- Built-In-Test (BITE) applications
- MIMO applications
Solid State Switch RI 2583
SP8T (Single Pole, 8 Throws), terminated, 0.1-6 GHz
The Ranatec SP8T Solid State Switch operates from DC to 6 GHz with low insertion loss, I2C control, and fast switching for RF applications.
The Ranatec SP8T Solid State Switch is a single-pole, eight-throw (SP8T) module covering DC to 6 GHz. It provides less than 3.1 dB insertion loss up to 3 GHz and supports I2C control with 8 selectable addresses for easy system integration. With a switching time of 10 μs and a voltage range of 4 to 30 VDC, it is ideal for automated RF testing.
Applications
Features
- Switch mode: SP8T I2C controlled, terminated
- 8 I2C-bus addresses selectable via DIP switch
- 0 – 400 kHz I2C clock
- DC – 6 GHz RF frequency range
- 63 dBm IP3
- +30 dBm maximum input power
- Insertion loss < 3.1 dB up to 3 GHz
- 10 us max switching time after data transfer1)
- Flexible supply voltage: 4-30 VDC
- High repeatability and Ultra-long lifetime
1) 50 us max switch settling time after data transfer
Specifications
| Switch mode | SP8T I2C ctrl, terminated |
| Supply voltage | 4 – 30 VDC |
| Supply current max | < 8 mA |
| I2C-bus LOW-level | 0.99 V |
| I2C-bus HIGH-level | 2.31 V |
| I2C-bus MAX-level | 5.5 V |
| Operating frequency | DC – 6 GHz |
| Impedance | 50 Ohm |
| Max DC at RF inputs | 0 VDC |
| VSWR (max) RFC→RFx |
1.55:1 @ 0.01 – 0.7 GHz 1.45:1 @ 0.7 – 3 GHz 1.60:1 @ 3 – 6 GHz |
| VSWR (max) RFx→RFC |
1.50:1 @ 0.01 – 0.7 GHz 1.35:1 @ 0.7 – 3 GHz 1.40:1 @ 3 – 6 GHz |
| VSWR RFx (max) (terminated) |
1.45:1 @ 0.01 – 0.7 GHz 1.35:1 @ 0.7 – 3 GHz 1.50:1 @ 3 – 6 GHz |
| Insertion loss (max) |
2.5 dB @ 0.01 – 0.7 GHz 3.1 dB @ 0.7 – 3 GHz 4.3 dB @ 3 – 6 GHz |
| Isolation (min) RFC – RFx |
55 dB @ 0.01 – 0.7 GHz 40 dB @ 0.7 – 3 GHz 35 dB @ 3 – 6 GHz |
| Isolation (min) RFx – RFy |
55 dB @ 0.01 – 0.7 GHz 40 dB @ 0.7 – 3 GHz 30 dB @ 3 – 6 GHz |
| Input power (max) | 30 dBm @ 0.01 – 6 GHz (thru path) |
| Input power (max) | 20 dBm @ 0.01 – 6 GHz (hot switching & into termination) |
| Input IP3 (typ) | 63 dBm @ 0.01 – 6 GHz |
Environmental Specifications
- Operating temp: 0°C to +50°C
- Storage temp: -20°C to +70°C
- Relative humidity: 95% at +40°C
Mechanical Specifications
- Dimensions: 50x56x22 mm
- Weight: 44 g
- Connectors: SMA(F)
You might also like
The Ranatec DP8T Solid State Switch is a dual-pole, eight-throw (DP8T) module for RF applications requiring multiple signal paths. Operating from 0.1 to 4.8 GHz, it offers insertion loss under…
The Ranatec SP4T Solid State Switch features a single-pole, four-throw (SP4T) configuration operating from DC to 6 GHz. It offers low insertion loss under 1.9 dB up to 3 GHz…
The Ranatec RF2018B is an RF Switch system with 12 solid state switch modules, each with 1 pole and 4 throws. It is well suited for high volume testing, where…

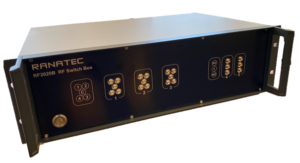

The Ranatec RF2020B RF Switch Box includes three SP4T switches up to 6 GHz and two SPDT switches up to 18 GHz. With low insertion loss and high isolation, it…
