The AC110/230V feedthrough filter is primarily designed to fit in Ranatec’s RF shield boxes, but can be used separately.
Feedthrough Filter RI 4205
110/230 VAC, 10 Amp, C14(m)-C13(f) connectors, outside shielded enclosure, panel mount
Enables AC power transmission through shielded enclosures, with 70 dB suppression at 10 GHz. For safety reasons the filter is not reciprocal, therefore two versions are available. This version is designed for mounting on the outside of a shielded enclosure, feeding the power to the inside of the enclosure.
The Ranatec 110/230 VAC Feedthrough Filter is engineered to facilitate the passage of AC power through shielded enclosures while maintaining electromagnetic integrity. Compatible with both 110V and 230V systems, it offers a filter suppression of 70 dB at 10 GHz and 60 dB at 1 GHz, ensuring minimal interference. It is panel mountable and CE compliant, making it suitable for various applications requiring reliable power delivery within shielded environments.
Applications
Features
- 110/230 VAC compatible
- 70 dB filter suppression at 10 GHz
- 60 dB filter suppression at 1 GHz
- Panel mountable
- CE compliant
Specifications
RI 4205
| Connector input | C14 male |
| Connector output (panel mount side) | C13 female |
| Material | Aluminum |
| Dimensions (LxWxH) | 125x65x48 mm |
| Weight | 474 g |
| Operating voltage | 110/230 VAC |
| Rated current | 10 A |
| Compliance | CE |
RI 4206
| Connector input (panel mount side) | C14 male |
| Connector output | C13 female |
| Material | Aluminum |
| Dimensions (LxWxH) | 129x65x56 mm |
| Weight | 528 g |
| Operating voltage | 110/230 VAC |
| Rated current | 10 A |
| Compliance | CE |
Electrical Interfaces
The physical connectors are located at each end.
Mechanical Interfaces
Prepared for panel mounting with two threaded M4 screwholes. It is delivered with an EMC shielding gasket for simple and reliable mounting.
Ordering
- RI 4205 110/230 VAC Feedthrough Filter
- RI 4206 110/230 VAC Feedthrough Filter
You might also like
The Ranatec HDMI Feedthrough Filter is designed for transmitting high-definition multimedia signals through shielded enclosures while minimizing electromagnetic interference. It supports HDMI 2.0, allowing data rates up to 18 Gbps…

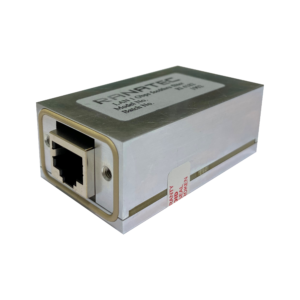

The Ranatec LAN 1 Gbps Feedthrough Filter facilitates the passage of gigabit Ethernet signals through shielded enclosures, ensuring minimal electromagnetic interference. It supports data rates up to 1 Gbps and…
The Ranatec LAN 10 Gbps Feedthrough Filter is designed to transmit high-speed Ethernet signals through shielded walls without compromising signal integrity. It supports data rates up to 10 Gbps and…
The Ranatec Fiber Feedthrough Filter ensures the transmission of high-speed optical signals through shielded enclosures, maintaining electromagnetic integrity. Supporting multimode and single-mode fiber connections, it is ideal for high-bandwidth data…
The Ranatec USB 2.0 Feedthrough Filter is designed to transmit USB 2.0 Hi-Speed signals through shielded enclosures while maintaining signal integrity. It supports data rates up to 480 Mbps and…
The Ranatec USB 2.0 Mini Feedthrough Filter enables the transmission of USB 2.0 signals through shielded enclosures using a compact form factor. It supports data rates up to 480 Mbps…

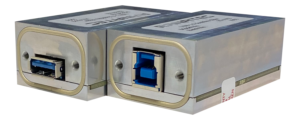

The Ranatec USB 3.0 Feedthrough Filter is engineered to transmit USB 3.0 Superspeed signals through shielded enclosures without compromising performance. It offers a minimum of 50 dB filter suppression at…
